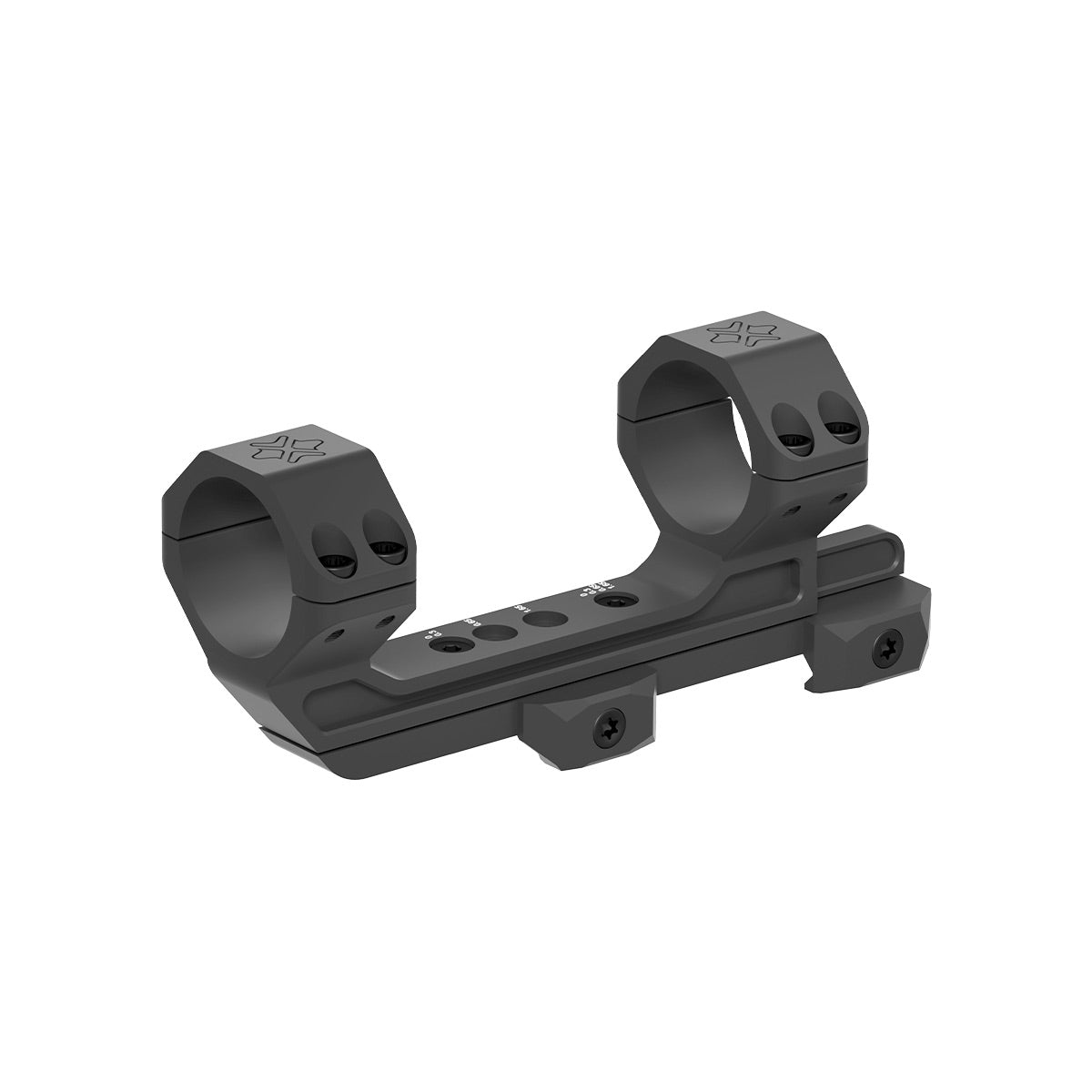

VO AR15 One-Piece Adjustable Extended Mount for 30mm Riflescope - Black

AR15 one-piece adjustable scope mount for 30 mm by Vector Optics
The AR15 one-piece mount by Vector Optics is designed for precise scope attachment, ensuring optimal shooting accuracy. Its adjustable length allows customization of the eye relief to meet the user’s needs, with extensions of 0.3, 0.65, and 1.65 inches for added comfort and precision.Constructed from aircraft-grade 6061-T6 aluminum, the mount offers high durability and lightweight performance. Thanks to precision CNC machining, the mount ensures exceptional stability and accuracy. The center height from the base to the ring is 38 mm (1.5 inches), providing the optimal scope height on the rifle.The RIS rail attachment is secured using two robust screws and an anti-slip locking system to prevent unintended movement. Each ring is equipped with four screws for secure and stable scope mounting.



Technical specifications

Ring diameter: 30 mm
Overall length: 139 mm
Overall height: 62 mm
Ring width: 45.5 mm
Center height: 38 mm (from base to center)
Gap length: 73 mm
Material: 6061-T6 aluminum alloy
Weight: 154 g
Mounting system: RIS/1913 Picatinny
Ring screws: 4 (M4 x 9 mm)




Package contents

One-piece scope mount for 30 mm
Allen key
T15 Torx key
T20 Torx key
